Industrial and commercial energy storage products

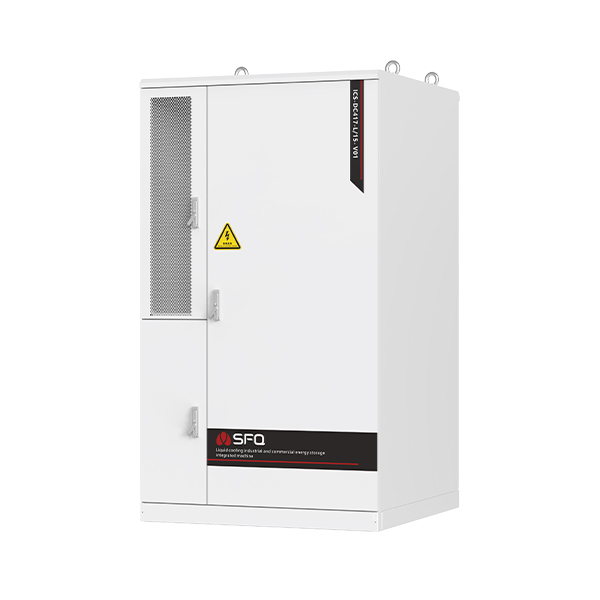

241kWh ICS-DC 241/A/10
PV Energy Storage System is an all-in-one outdoor energy storage cabinet that integrates a LFP battery, BMS, PCS, EMS, air conditioning, and fire protection equipment. Its modular design includes a battery cell-battery module-battery rack-battery system hierarchy for easy installation and maintenance. The system features a perfect battery rack, air-conditioning and temperature control, fire detection and extinguishing, security, emergency response, anti-surge, and grounding protection devices. It creates low-carbon and high-yield solutions for various applications, contributing to building a new zero-carbon ecology and reducing businesses’ carbon footprint while improving energy efficiency.
PRODUCT ADVANTAGES
-
Safe and reliable
Independent cabinet-type battery system, with a high-protection-level design of one cabinet per cluster.
-
Temperature control for each cluster and fire protection for each cluster enable precise regulation of the environmental temperature.
-
Flexible and stable
Multiple battery cluster systems in parallel with centralized power management can achieve cluster-by-cluster management or centralized parallel management.
-
Multi-energy and multi-function integration technology plus an intelligent management system enable flexible and friendly collaboration among devices in composite energy systems.
-
Intelligent operation and maintenance
Intelligent AI technology and an intelligent energy management system (EMS) enhance equipment work efficiency.
-
Intelligent microgrid management technology and random fault withdrawal strategy ensure stable system output.
PRODUCT PARAMETERS
| Battery Cabinet Product Parameters | ||||
| Parameter Category | 40kWh ICS-DC 40/A/10 |
241kWh ICS-DC 241/A/10 |
417kWh ICS-DC 417/L/10 |
417kWh ICS-DC 417/L/15 |
| Cell Parameters | ||||
| Cell Specification | 3.2V/100Ah | 3.2V/314Ah | 3.2V/314Ah | 3.2V/314Ah |
| Battery Type | Lithium Iron Phosphate | |||
| Battery Module Parameters | ||||
| Grouping Form | 1P16S | 1P52S | ||
| Rated Voltage | 51.2V | 166.4V | ||
| Rated Capacity | 5.12kWh | 16.076kWh | 52.249kWh | |
| Rated Charge/Discharge Current | 50A | 157A | 157A | |
| Rated Charge/Discharge Rate | 0.5C | |||
| Cooling Method | Air cooling | |||
| Battery Cluster Parameters | ||||
| Grouping Form | 1P128S | 1P240S | 2P208S | 1P416S |
| Rated Voltage | 409.6V | 768V | 665.6V | 1331.2V |
| Rated Capacity | 40.98kWh | 241.152kWh | 417.996kWh | 417.996kWh |
| Rated Charge/Discharge Current | 50A | 157A | 157A | |
| Rated Charge/Discharge Rate | 0.5C | |||
| Cooling Method | Air cooling | |||
| Fire Protection | Perfluorohexanone (optional) | Perfluorohexanone + Aerosol (optional) | ||
| Smoke Sensor, Temperature Sensor | 1 smoke sensor, 1 temperature sensor | |||
| Basic Parameters | ||||
| Communication Interface | LAN/RS485/CAN | |||
| IP Protection Level | IP20/IP54 (optional) | |||
| Operating Ambient Temperature Range | -25℃~+55℃ | |||
| Relative Humidity | ≤95%RH, no condensation | |||
| Altitude | 3000m | |||
| Noise | ≤70dB | |||
| Dimensions (mm) | 800*800*1600 | 1250*1000*2350 | 1350*1400*2350 | 1350*1400*2350 |
