Residential energy storage products

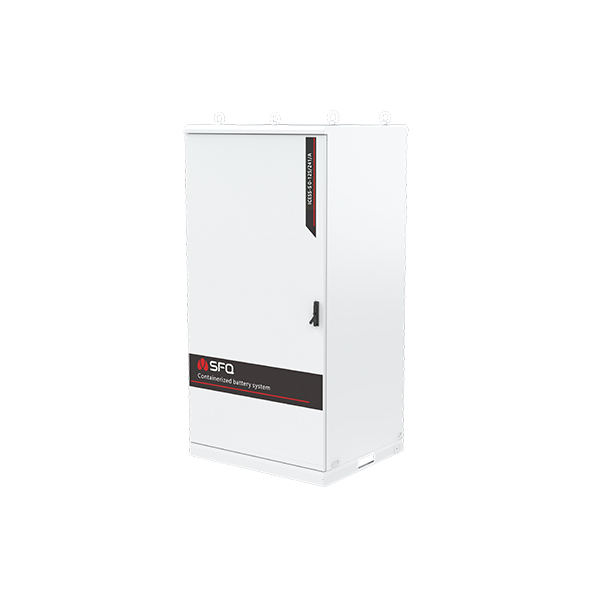

ICESS-T 0-120/241/A
PRODUCT ADVANTAGES
-
Rack-mounted design for easy installation
-
Web/APP interaction with rich content, allowing remote control.
-
Fast charging and ultra-long battery life.
-
Intelligent temperature control, multiple safety protection and fire protection functions.
-
Concise appearance design, integrated with modern home furnishings.
-
Compatible with multiple working modes.
PRODUCT PARAMETERS
| Item | Project |
| Model | ICESS-T 0-120/241/A |
| Capacity | 241.152KWh |
| Rated Voltage | 768V |
| Operating Voltage Range | 696~852V |
| Battery Cell | LFP3.2V/314Ah |
| Battery Cell | |
| Apparent Power | 135kVA |
| Rated Power | 120kW |
| Rated Voltage | 400Vac |
| Voltage Range | 400Vac±15% |
| Rated Current | 173A |
| Frequency Range | 50/60Hz±5Hz |
| Power Factor | 0.99 |
| THDi | ≤3% |
| AC System | Three-phase Five-wire System |
| Three-phase Five-wire System | |
| Rated Power | 120kW |
| Rated Voltage | 380Vac |
| Rated Current | 173A |
| Rated Frequency | 50/60Hz |
| THDu | ≤5% |
| Overload Capacity | 110%（10min） ，120%（1min） |
| Basic Parameters | |
| Communication Method | LAN、 RS485/CAN、 4G |
| Operating Temperature Range | Charging: 0°C ~ 55°C Discharging: -20°C ~ 55°C |
| Maximum Charge/Discharge Current | 173A |
| IP Rating | IP54 |
| Cooling Method | Air Cooling |
| Relative Humidity | 10%RH ~90%RH |
| Altitude | ≤2000m |
| Installation Method | Rack-mounted |
| Dimensions (mm) | 1170*1000*2330 |
