Micro - grid energy storage products
SCESS-T 160-80/482/A-A
PRODUCT ADVANTAGES
-

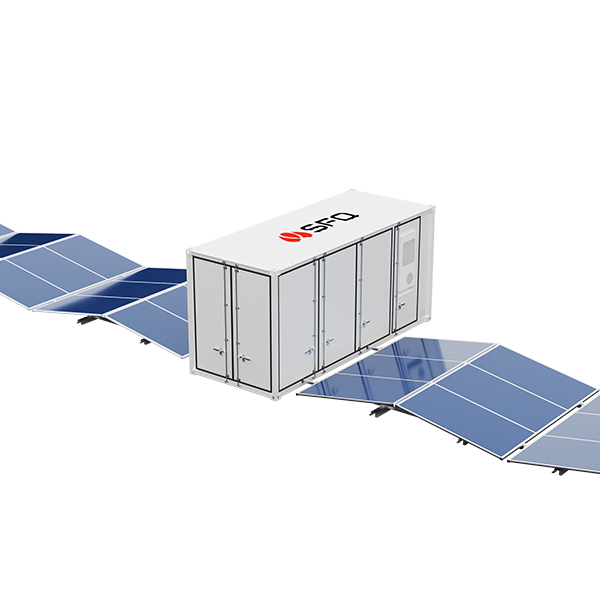

Equipped with a container body and folding supports, it can be quickly relocated according to customer requirements.
-
According to different load requirements, multiple box units can be combined to achieve expansion.
-
Complete type, performance and safety tests before leaving the factory, ready for immediate use.
-
Meet the electricity demands for mines, remote construction sites, production, construction, and office use.
-
Large-screen data display, real-time monitoring, and immediate availability for inspection.
PRODUCT PARAMETERS
| Parameter Name | Technical Specs |
| Model | SCESS-T 160-80/482/A-A |
| Battery type | LFP |
| Rated current | 104.1A DC |
| Rated Energy | 482kWh |
| AC rated power | 80kW |
| AC rated voltage | 230V/400V |
| AC rated frequency | 50Hz |
| Maximum photovoltaic power | 87.6kWp |
| MPPT voltage range | 150V-850V |
| Number of MPPTs | 6 |
| Cooling method | Air-cooled |
| Working temperature range | -20~55℃ |
| Protection level | Ip54 |
| Weight | ≤17T |
| Size (W/D/H) | 6058*2438*2896mm |
